Auto Encoders

Auto Encoders

Supervised	Artificial Neural Networks	Used for Regression & Classification
	Convolutional Neural Networks	Used for Computer Vision
	Recurrent Neural Networks	Used for Time Series Analysis

Unsupervised	Self-Organizing Maps	Used for Feature Detection
	Deep Boltzmann Machines	Used for Recommendation Systems
	AutoEncoders	Used for Recommendation Systems

---

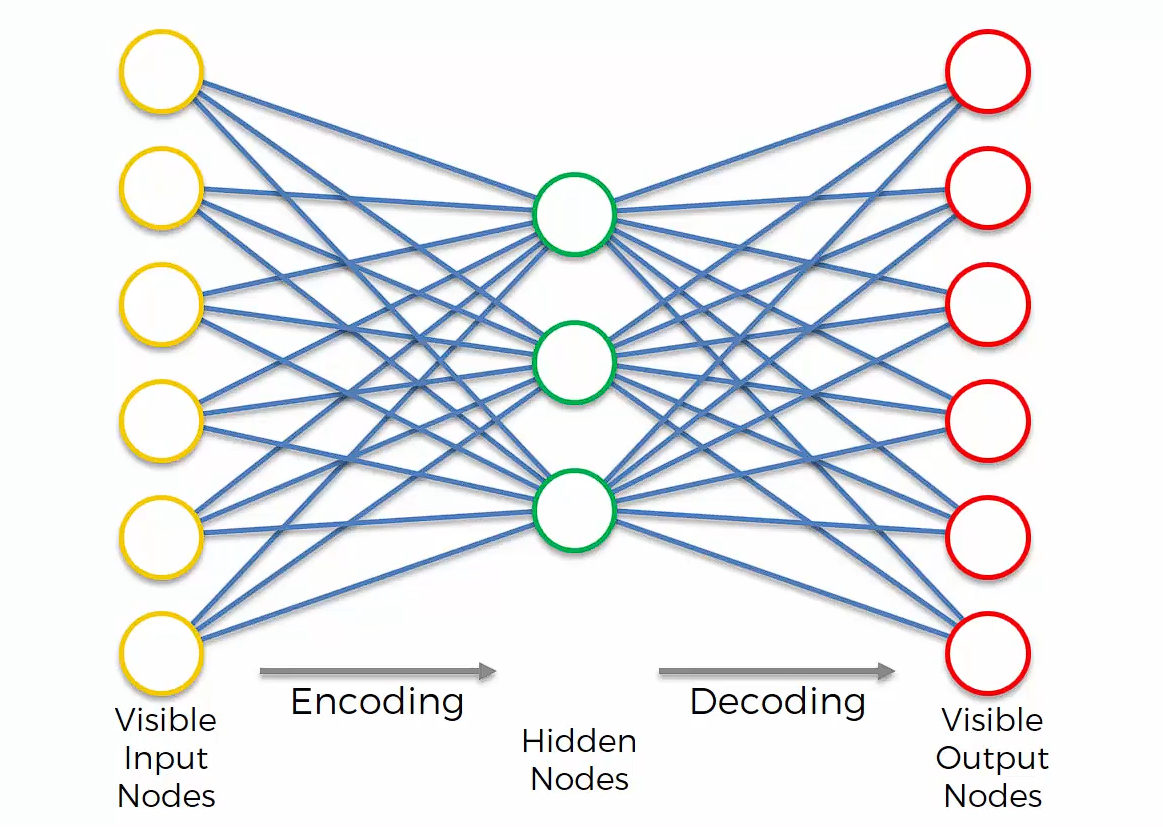

Visual Representation of a Auto Encoder:

---

• As the name suggests an Auto Encoder encodes itself.

• It takes some sort of inputs, put some through a hidden layer, and then it gets outputs, but it aims for the outputs to be identical to the inputs.

• Auto Encoders are not a pure type of Unsupervised Deep Learning Algorithm.

• They are actually a Self-Supervised Deep Learning Algorithm, because they are comparing to something on the end.

• The hidden layer is also called as the coding layer or the bottleneck.

---

Uses:

1. They can be used for feature detection.
2. They can also be used to build powerful recommender systems
3. They are used for encoding, basically.

---

Additional Reading

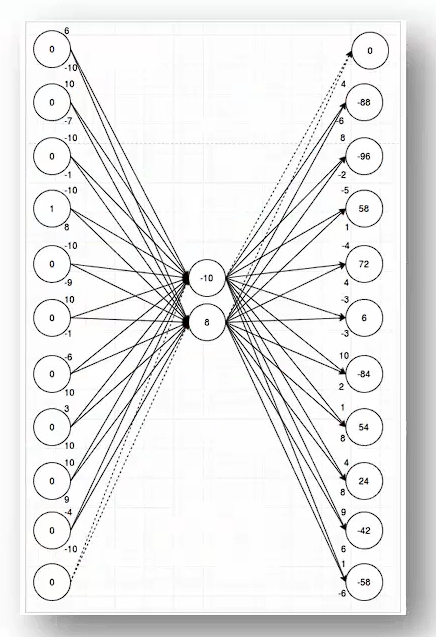

Neural Networks Are Impressively Good At Compression

By Malte Skarupke (2016)

Neural Networks Are Impressively Good At Compression - Malte Skarupke

---

Training an Auto Encoder

Algorithm:

• STEP 1: We start with an array where the lines (the observations) correspond to the users and the columns (the features) correspond to the movies. Each cell (u, i) contains the rating (from 1 to 5, 0 if no rating) of the movie i by the user u.

• STEP 2: The first user goes into the network. The input vector x = (r1, r2, ..., rm) contains all its ratings for all the movies.

• STEP 3: The input vector x is encoded into a vector z of lower dimensions by a mapping function f (e.g: sigmoid function):
       z = f(Wx + b)
  where
     W is the vector of input weights and b the bias



• STEP 4: z is then decoded into the output vector y of same dimensions as x, aiming to replicate the input vector x.

• STEP 5: The reconstruction error d(x, y) = ||x-y|| is computed. The goal is to minimize it.

• STEP 6: Back-Propagation: from right to left, the error is back-propagated. The weights are updated according to how much they are responsible for the error. The learning rate decides by how much we update the weights.

• STEP 7: Repeat Steps 1 to 6 and update the weights after each observation (Reinforcement Learning). Or:
       Repeat Steps 1 to 6 but update the weights only after a batch of observations (Batch Learning).

• STEP 8: When the whole training set passed through the ANN, that makes an epoch. Redo more epochs.

---

Additional Reading

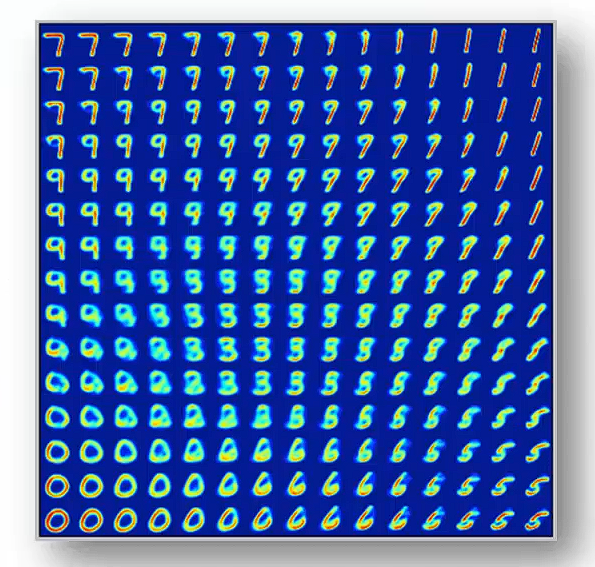

Building Autoencoders in Keras

By Francois Chollet (2016)

Building Autoencoders in Keras - Francois Chollet

---

Sparse Autoencoders

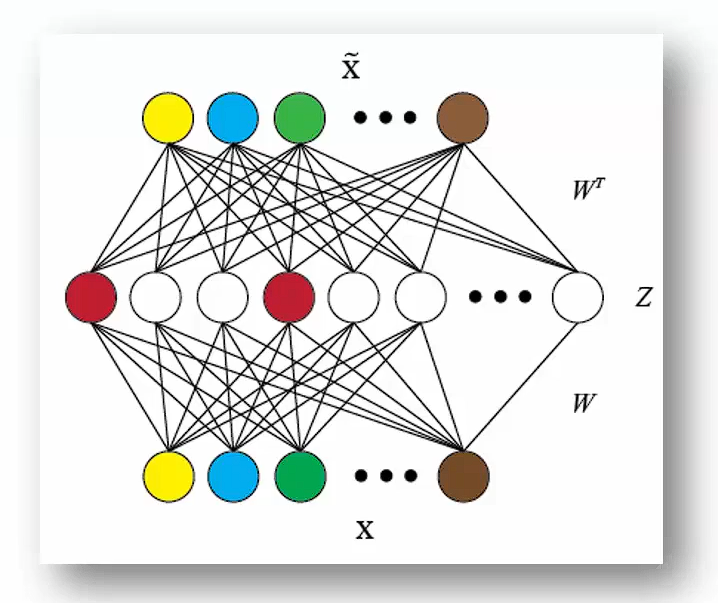

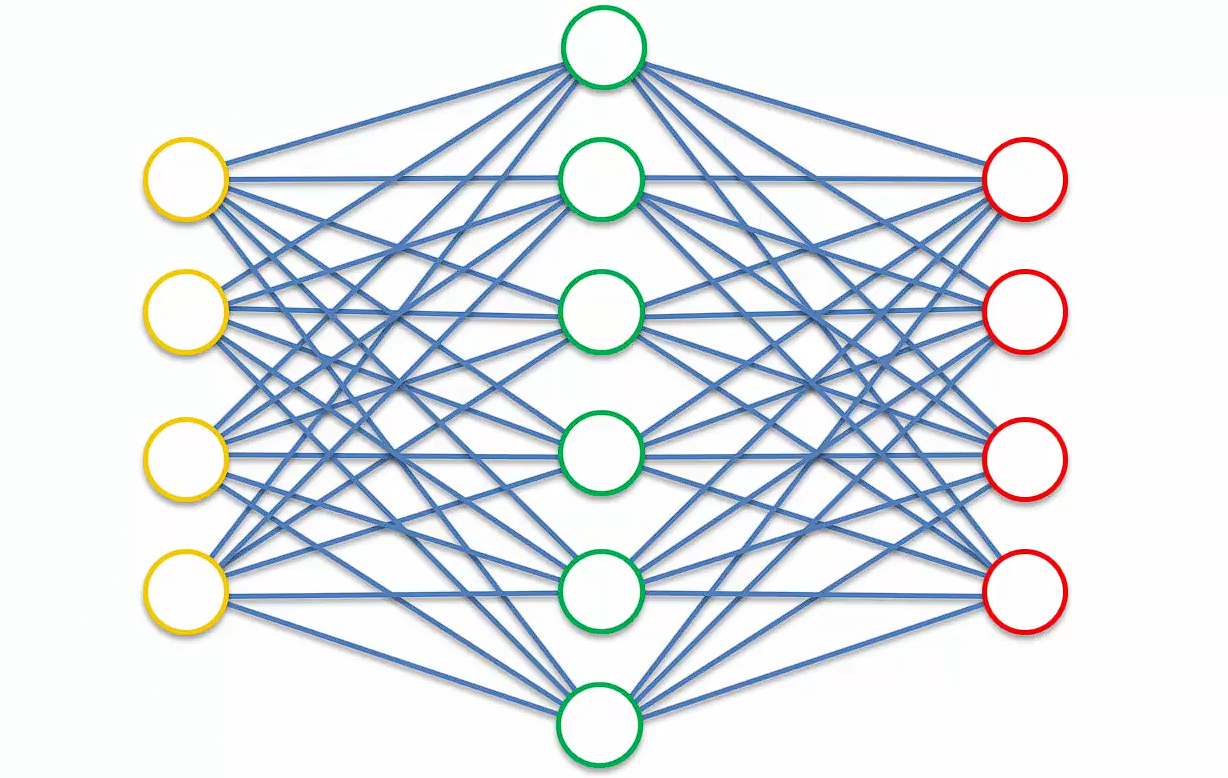

• A Sparse Autoencoder is an autoencoder, where the hidden layer is greater than the input layer. But a regularization technique which introduces sparsity has been applied.

   

• A regularization technique basically means something that helps prevent over-fitting or stabilizes the algorithm.

---

Additional Reading

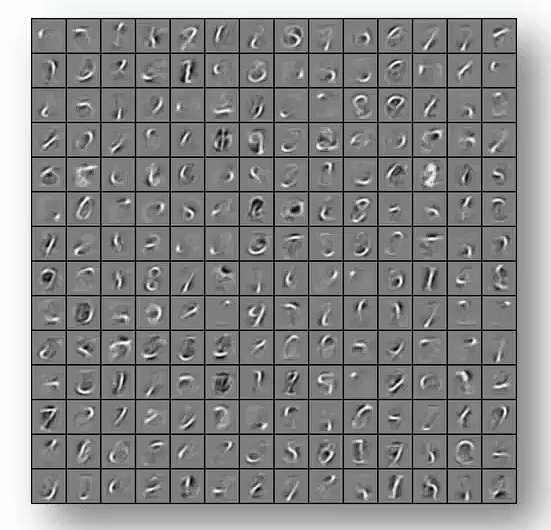

Deep Learning Tutorial - Sparse Autoencoder

By Chris McCormick (2014)

Deep Learning Tutorial - Sparse Autoencoder - Chris McCormick

---

Additional Reading

Deep Learning Tutorial: Sparse Autoencoders

By Eric Wilkinson (2014)

Deep Learning Tutorial: Sparse Autoencoders - Eric Wilkinson

---

Additional Reading

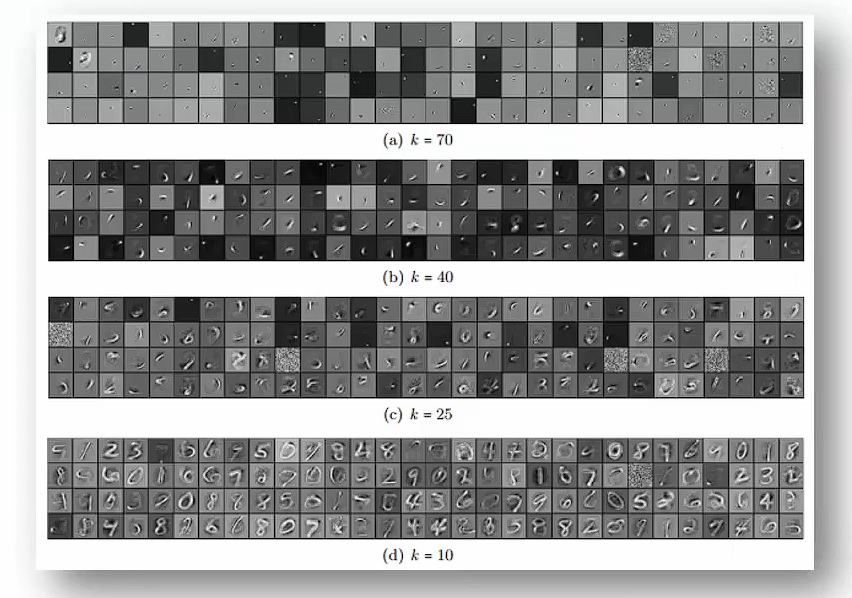

k-Sparse Autoencoders

By Alireza Makhzani et al. (2014)

k-Sparse Autoencoders - Alireza Makhzani

---

Denoising Autoencoders

• Denoising Autoencoder is another regularization technique, which is here to combat the problem of when we have more nodes in the hidden layers than in the input layer.

• Denoising Autoencoder is a Stochastic Autoencoder.

• It depends on the random generation or random selection of which values are going to be zeroed out and so it becomes a Stochastic type of Autoencoder.

---

Additional Reading

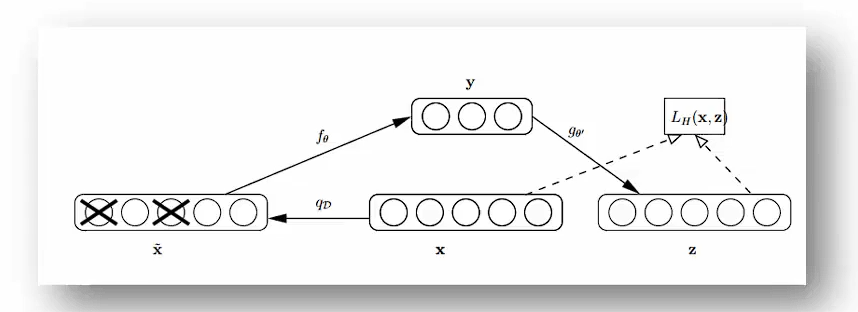

Extracting and Composing Robust Features with Denoising Autoencoders

By Pascal Vincent et al. (2008)

Extracting and Composing Robust Features with Denoising Autoencoders - Pascal Vincent

---

Contractive Autoencoders

• Contractive Autoencoder is another regularization technique just like sparse autoencoders and denoising autoencoders, which is designed to combat the problem when we have an over-complete hidden layer in the autoencoder.

   

• It leverages the whole training process where information goes through the autoencoder, then we get the outputs and then they are compared with the inputs. Contractive Autoencoders add a penalty into this loss-function that has been propagated back through the network, and it specifically doesn’t allow the autoencoder to just simply copy these values across.

---

Additional Reading

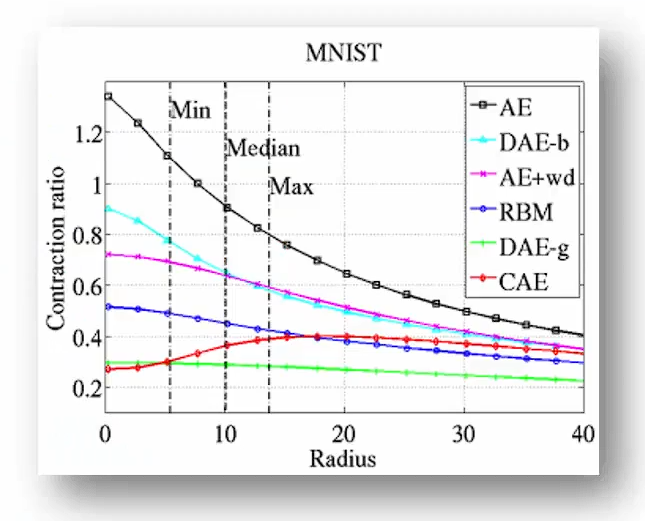

Contractive Auto-Encoders: Explicit Invariance During Feature Extraction

By Salah Rifai et al. (2011)

Contractive Auto-Encoders: Explicit Invariance During Feature Extraction - Salah Rifai

---

Stacked Autoencoders

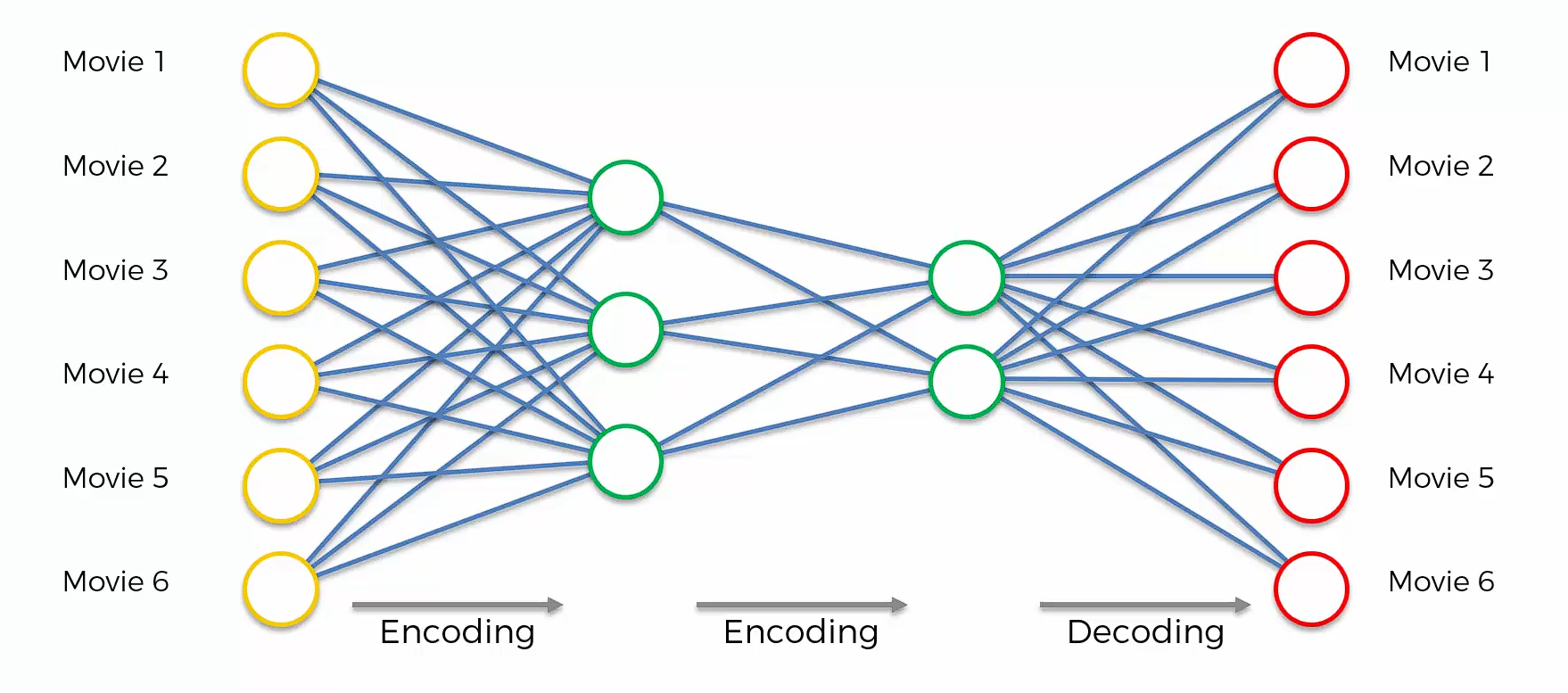

• A Stacked Autoencoder is if we add another hidden layer into our autoencoder. So, we have two stages of encoding and one stage of decoding.

---

Additional Reading

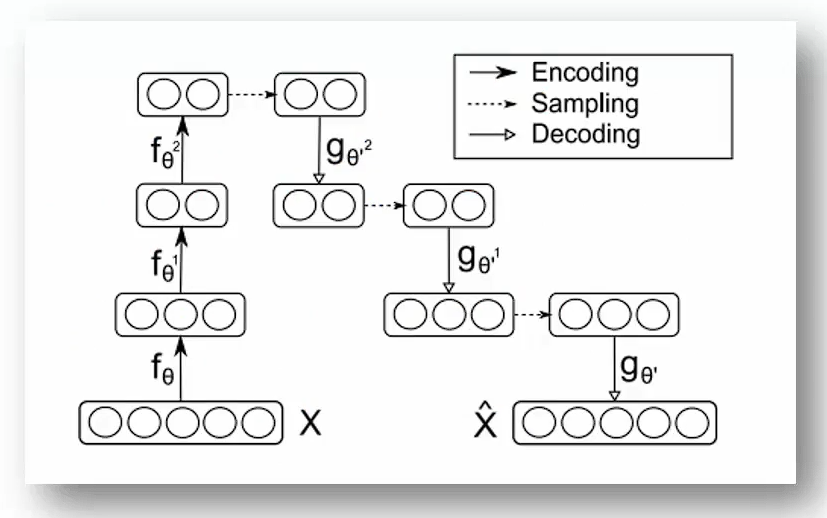

Stacked Denoising Autoencoders: Learning Useful Representations in a Deep Network with a Local Denoising Criterion

By Pascal Vincent et al. (2010)

Stacked Denoising Autoencoders - Pascal Vincent

---

Deep Autoencoders

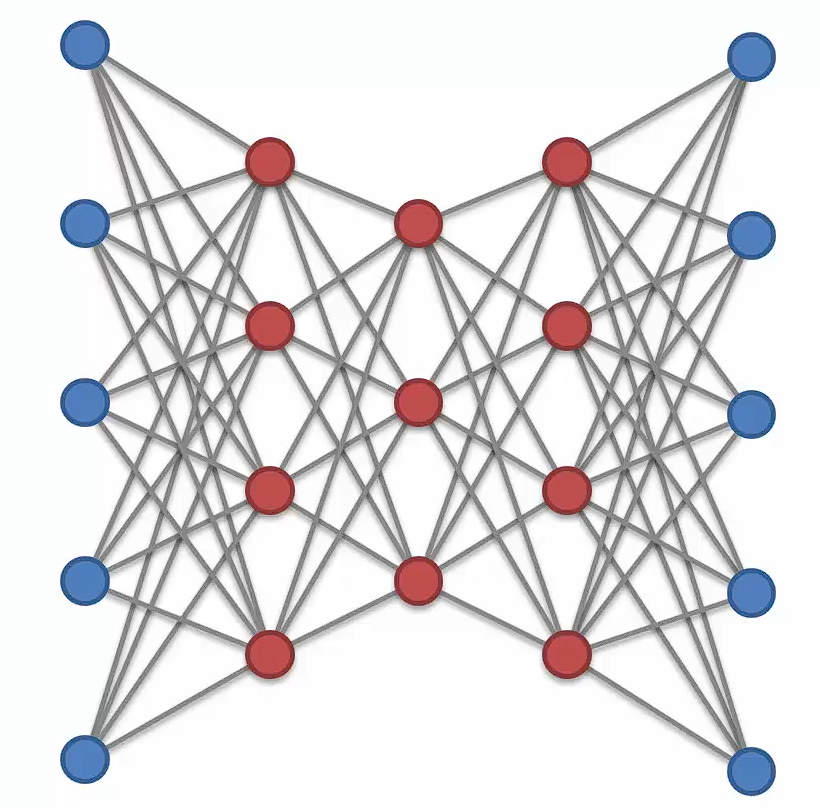

• NOTE: Stacked Autoencoders are not the same thing as Deep Autoencoders.

   

• These are Restricted Boltzmann Machines (RBMs) that are Stacked. Then they are pre-trained layer by layer. Then they are unrolled. Then they’re fine tuned with back propagation. So then you do get directionality in your network and then you have back propagation.

• In essence, a Deep Autoencoder comes from RBMs.

• Stacked Autoencoders are just normal autoencoders stacked. A Deep Autoencoder is RBMs stacked on top of each other and then certain things are done with them in order to achieve a autoencoding mechanism.

---

Additional Reading

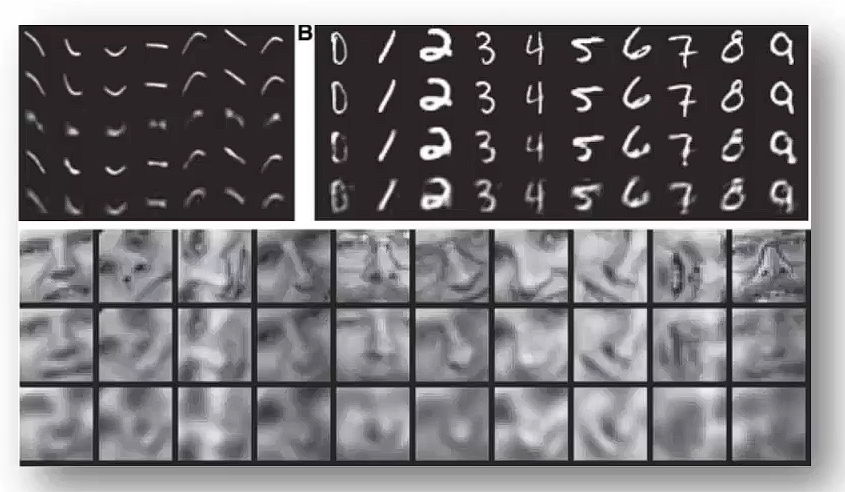

Reducing the Dimensionality of Data with Neural Networks

By Geoffrey Hinton et al. (2006)

Reducing the Dimensionality of Data with Neural Networks - Pascal Vincent

---
